Shop-Built Bulk Center Neatly Dispenses Oil
"We made our own bulk oil dispenser that's neater and handier to use than any commercial system I've ever seen," says Joel Waldner, Lethbridge, Alberta.
"First we built a tank out of 1/8-in. thick sheet metal. The tank is 12 ft. wide, 6 ft. high, and 2 ft. deep. We divided it into four interior compartments, then
..........
You must sign in, subscribe or renew to see the page.

You must sign in, subscribe or renew to see the flip-book
Shop-Built Bulk Center Neatly Dispenses Oil FARM SHOP Maintenance 22-4-38
"We made our own bulk oil dispenser that's neater and handier to use than any commercial system I've ever seen," says Joel Waldner, Lethbridge, Alberta.

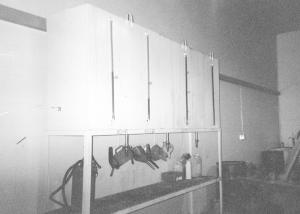

"First we built a tank out of 1/8-in. thick sheet metal. The tank is 12 ft. wide, 6 ft. high, and 2 ft. deep. We divided it into four interior compartments, then made a frame out of angle iron to mount the tank on the wall about 5 ft. high. Each compartment is fitted with a tap at the bottom. A 2-in. drip tray runs the full width of the tank to catch any spillage. The drip pan slopes to one end where there's a tap for draining spilled oil off into a pail.
"We use it to hold four different oils. A sight gauge on each compartment lets you see at a glance how much oil is left." Contact: FARM SHOW Followup, Joel Waldner, 67 Tudor Crescent, Lethbridge, Alberta, Canada T1K 5C7.
