Multi-Purpose Trailer Works Great With ATV'S
If you've been looking for more jobs that you can do with an ATV, you'll like this new multi-purpose trailer that can be used for all kinds of jobs and can be pulled by any ATV or pickup," says Orval Bjornson, G O Welding & Mfg., Danbury, Sask.

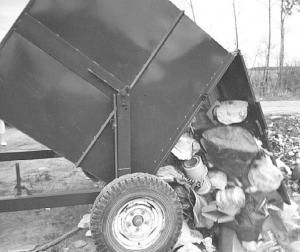

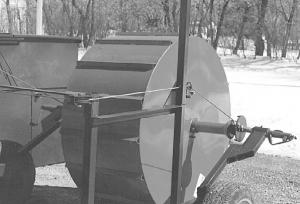

The "Duz-All" trailer operates entirely by hand winches that eliminate the need for batteries or hydraulics. It's designed to carry a lidded dump box, to unroll round bales, or to unload grain on the ground using a 31-in. wide feed drum. An optional deck is avail-able to haul small equipment such as ATV's, snowmobiles, etc.
The rig's two hand-operated winches mount on the hitch and are used to raise and lower the load.
The bale spears, dump box, and rolling feed drum all mount on a pair of uprights positioned between the wheels. It takes just minutes to switch between units.

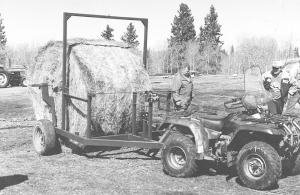

To haul a bale, a pipe slips through the center of the bale. The feed drum and dump box mount on the same pipe.
The trailer sells for $1,600, the garbage box for $875, and the deck for $398. Optional lights sell for $125 (Canadian).
Bjornson offers another trailer designed to transport and unload 1-ton mini bags of seed or fertilizer. An optional deck that can be tilted is available, allowing the trailer to haul and unload ATV's or snowmobiles. The trailer sells for $2,350 and the deck for $398 (Canadian).
Contact: FARM SHOW Followup, Orval Bjornson, G O Welding & Mfg., Box 91, Danbury, Sask., Canada S0A 0P0 (ph 306 548-4683 or 4262; fax 4683).
