Self-Propelled, Articulated 4-WD Sprayer

1996 - Volume #20, Issue #3, Page #10

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

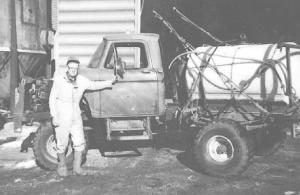

Floyd Wagoner used parts from several old pickups to build a self-propelled, articulated 4-WD spray rig for a total cost of only about $1,600.
He put an articulation joint just behind the cab and mounted a hydraulic cylinder on each side to steer the truck. A 400-gal. poly tank mounts on the back with a 30-ft. long, 3-section boom from an old home-built, pull-type sprayer.
"It works better than a pull-type sprayer because the cab protects me from chemicals, and I can cover acres a lot faster. I go about 12 mph," says Wagoner. "It turns a little shorter than a conventional pickup. The front wheels are fixed, so whenever I turn, the rear wheels follow the front wheels. There are only two sets of tracks, which really work great for spraying in drilled soybeans because less of the crop gets run over. Also, with only two tracks, I can make turns in muddy spots a lot better."
He mounted the cab from a 1966 Chevy pickup on the frame of a 1958 Ford 1-ton 4-WD. He cut the frame in half and used a 1-in. dia. steel pin inside a steel bracket to join the two frames together. He also mounted an 18-in. long, 2-in. dia. cylinder on each side. He mounted the rear axle of an old Ford 3/4-ton pickup on the front. The rear axle is also off a Ford 3/4-ton pickup. The 6-cyl., 300 cu. in. gas engine was salvaged from a 1979 Ford F-150 1/2-ton pickup, and the 4-speed transmission and transfer case came out of an early 1960s IH 4-WD.
"I use it to spray both preemergence and postemergence herbicides on soybeans and milo," says Wagoner. "When spraying drilled soybeans, I use conventional-size pickup tires. Otherwise, I use 14 by 16 floater tires because they don't pack the soil as much and provide a softer ride. I'm now building a 51-ft. hydraulic-fold boom for more capacity.
"The engine has over 100,000 miles on it, but still works good. An air tank mounts behind the cab to provide air for the sprayer's foam marker. It also comes in handy for putting air in the tires.
"There are three belt-driven accessories—the air compressor, power steering pump, and sprayer pump. To provide power for the pumps and compressors, I used a jackshaft and three extra pulleys that run off the crankshaft."
Contact: FARM SHOW Followup, Floyd Wagoner, Rt. 4, Box 173, Hiawatha, Kan. 66434 (ph 913-742-3859).
