Gravity-Powered Dump Trailer

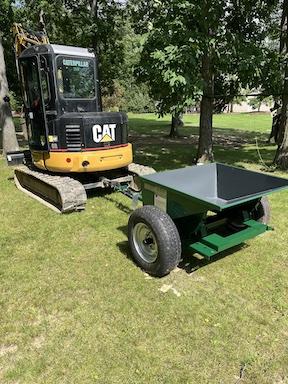

No hydraulics are needed to tip Mark Yaxs 4,000-lb. dump trailer. All he has to do is pull a rope from his tractor seat to release the half-cubic yard load. Once its empty, the hopper usually swings back into the locked position. If not, a second rope pulls it into place.

I can dump without getting off the tractor, and hooking it up is easy; no hoses involved, says Yax.



   Yax also appreciates his minimal investment in the trailer. I bought the hopper for only $350, he says. The sides are 11-gauge steel but reinforced around the top with 1/2-in. steel. It came complete with safety chains. All I had to do was remove the caster wheels.



   Yax used 2 1/2-in. square steel tubing for the frame and the tongue and mounted a pintle ring hitch.



   The axle is the most unique component. Its a 1930s truck I-beam front axle. I once bought an engine from a guy, and he had the axle laying around, recalls Yax. He asked if I wanted it, and I told him to throw it in the trailer. It sat behind the barn for 25 or 30 years before I decided to make some use of it. I cut the springs off and used the spring mounts to bolt underneath the dump hopper.



   Yax had planned to shorten the axle, which wouldve been a blunder, he admits. I put the axle on, and it only cleared the hopper by a quarter inch, he says. I had forgotten the offset of the rim.



   To mount newer wheels on the old axle hubs, Yax had to redrill the spindles. He also drilled a hole in the bottom of the hopper for a 2-in. pipe fitting.



   I mounted a coupling to the outside, so I can use it as a water source for remote pressure washing, says Yax. It also allows me to drain it if the hopper catches rainwater.



   Contact: FARM SHOW Followup, Mark S. Yax, 36755 Pettibone Rd., Solon, Ohio 44139  (ph 440-668-6296; valmarktool@aol.com).
