Tool That Releases Pressurized Hydraulic Couplers
 ✖  |

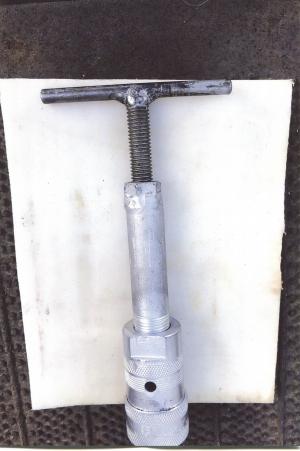

Bill Knutson, Centerville, S. Dak.: “I made this simple tool that makes releasing pressurized hydraulic couplers as easy as turning a T-handle. I removed the ball and spring from a coupler and screwed on a 4-in. long nipple, then welded a 1/2-in. nut to the other end of the nipple. I also drilled a 3/16-in. dia. hole in the coupler and welded a 1/2-in. threaded rod to a T-handle. Screwing the rod all the way into the nut pushes on the ball at the end of the hose and releases the pressure. Works great.”
Click here to download page story appeared in.
Click here to read entire issue
Tool That Make Releases Pressurized Hydraulic Couplers TRACTORS Hydraulics Bill Knutson Centerville S Dak : “I made this simple tool that makes releasing pressurized hydraulic couplers as easy as turning a T-handle I removed the ball and spring from a coupler and screwed on a 4-in long nipple then welded a 1/2-in nut to the other end of the nipple I also drilled a 3/16-in dia hole in the coupler and welded a 1/2-in threaded rod to a T-handle Screwing the rod all the way into the nut pushes on the ball at the end of the hose and releases the pressure Works great ”
