Zero-Turn Mower Converted To Tracks

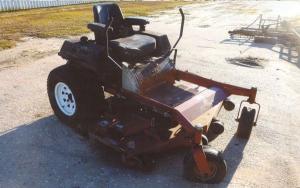

James Bassett, Berlin, Md., turned an early 1990’s Yazoo zero-turn riding mower into a camouflaged marsh buggy that rides on tracks, and can motor through the marsh land on his property.
    The tracks ride around 3 sets of wheels and axles. The mower’s original rear wheels drive the machine, and the tracks ride around them and 2 more sets of axles in front. A wooden compartment just in front of the driver is used for storage and to haul dead deer.
    “I live on a big farm that borders a bay with lots of marshland. We do a lot of deer hunting there, and it’s always a battle getting dead deer off the marsh. My marsh buggy works excellent both on and off the marsh,” says Bassett.
    “I already had the zero-turn mower, and a friend gave me some old hard plastic tracks off an old Argo off-road vehicle.”
    The Yazoo mower was equipped with a 25 hp. Kohler engine and 60-in. deck. He removed the deck, then cut off the front part of the mower frame and used 2-in. square tubing to lengthen the mower frame by 18 in. He mounted 2 boat trailer axles on front.
    The gas tanks were in the way of the tracks so he added 2 wooden side panels to the machine and bolted the gas tanks onto them.
    “I built the machine 5 years ago and it has really changed the way I hunt. Now I want to shoot deer on the marsh just for a chance to use it,” says Bassett. “The rear tires drive the machine without any slippage inside the tracks, and the side pieces keep water from splashing on me as I drive. I use the mower’s original controls to steer and to go forward and backward. If I need to haul more than one deer I pull the second one on a rope behind me.”
    Bassett also replaced the mower’s original rear tires with lugged ATV tires. “The 4-wheeler tires have plenty of tread to pull the tracks,” he notes.
    Contact: FARM SHOW Followup, James Bassett, 9632 Goody Hill, Berlin, Md. 21811 (ph 443 366-2034; bassettpullingteam@yahoo.com).
