Skid Steer Built From Old Car

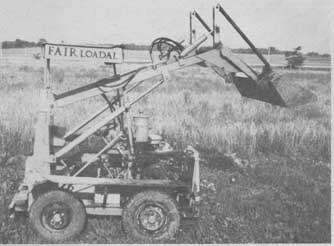

Ontario welder and machine shop instructor Bill Fair of Paisley didn't want to spend the money for a new skid steer loader, so he built his own mini loader from a 1975 Honda Civic front-wheel drive car and other miscellaneous junk parts.
Fair uses the mini loader on his own farm as well as in a high school class he teaches on farm equipment repair.
"It turns in a 16-ft. radius and works much like a skid steer loader, but it cost only very little to build," says Fair. "It works great for loading stacks of six small square bales at a time in the field onto wagons. I also use it to clean my barn, scrape snow, and pull empty wagons. The Honda engine is very fuel efficient. I mounted a 2-gal. plastic gas canon back, and those two gal. last a full day.
"I spent a year building the loader. A new skid steer loader would cost too much and would be too slow to retrieve bales in the field. The engine is geared down at a 3:1 ratio so I can go real slow in first gear for field work or up to 30 mph on the highway. The 1,250 cu. in., 4-cylinder gas engine has plenty of power. The only problem is I have to be careful I don't dig the front snow tires into the ground and twist an axle.
"I used every part I could from the car, including the tires, axles, steering wheel, rack and pinion steering, steering box, gearshift, clutch and gas pedals, rear wheel brakes, and part of the dash. I even converted the car's side marker lights to flashing safety lights that are mounted on the roof. I also mounted a radio and speaker under the roof. The seat is from an old tractor. I could pull the engine out by removing four bolts and replace it with the engine from my 1980 Honda. It would take only two hours to change engines."
Fair built a steel frame to mount the engine and hydraulic pump (salvaged from an old New Holland swather) that operates the loader. The pump is belt-driven by the engine. He made a firewall to mount the voltage regulator, clutch and gas pedals, and dash. He used 2 by 4-in. sq. steel tubing to make the loader arms and made the bale fork as well as three different buckets (the one shown measures 5 ft. wide, 14 in. deep, and 12 in. high). "The small size of the bucket and a 100-lb. weight mounted at the rear of the loader keeps it from tipping," notes Fair. "I use two small power steering cylinders off an old Case combine to dump the bucket. I pull two pins to remove the bucket and two more pins to remove the bucket's dump cylinders. The hydraulic control levers were borrowed from an old Ford tractor."
Fair geared down the engine by adding a set of sprockets between the transmission and axles, which are both chain-driven. He raised the engine and transmission to make room for the drive system and lowered both axles by removing the pillow block bearings they were mounted on.
