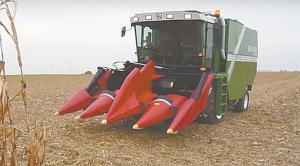

Combine Harvests Two Plots At Once
 ✖  |
Haldrup Manufacturing recently introduced a new Double Plot Combine that enables seed and research companies to harvest 2 different plots with 2 seed plots in one pass. The CTS-95 has two completely separate feederhouses, threshing compartments and grain tanks. Material from each side is kept completely separate throughout the harvesting process.
The machine is powered by a 218 hp water-cooled Deutz turbo-diesel engine. It can easily handle a hydraulically foldable 2x2 row Gehringhoff corn or sunflower header. Grain platforms are also available. An optional 2-speed drive moves the machine in an infinite range from 0 to 12 mph.
Two conventional threshing units on the machine have 25-in. wide threshing channels. A 17-in. threshing cylinder initially separates grain from residue. Grain is cleaned by upper and lower sieves working in opposite directions. Residue moves out of the machine over two straw walker systems, each of them with 3 walkers over 3 steps.
Harvested crops are carried by an air system into the pre-hopper of the weighing system. A hanging scale is sensitive to vibrations and guarantees reliable results. The pre-hopper and the weighing hopper each hold slightly more than a bushel. Samples can be taken from right inside the cab as material is being harvested. The spacious cab allows excellent visibility, ample room for the machine operator, an assistant and sampling supplies.
The CTS-95 can be optioned with Harvest Manager hardware and software, near-infrared spectroscopy (NIRS) for analysis of value-determining ingredients, a hectoliter box, moisture measurement, an on-board camera, straw chopper and other options tailored to specific user needs.
Contact: FARM SHOW Followup, Haldrup USA, 425 Industrial Parkway, Ossian, Ind. 46777 (ph 866 750-7555).
