Garbage Truck Wood Splitter

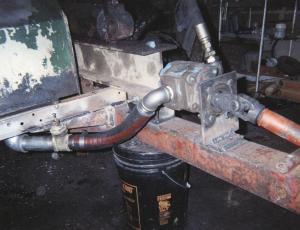

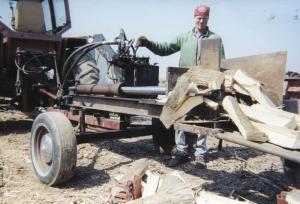

Garbage Truck Wood Splitter TRUCKS Miscellaneous Hydraulics from an old garbage truck work great to power a homebuilt wood splitter according to Norman Zemlicka of Cobb Wis The family needed to upgrade 10 years ago when his son bought an outdoor stove that could handle 30-in long blocks of wood     On a trip to a salvage yard a garbage truck hydraulic pump caught Zemlicka’s attention and at $50 the price was right Later he purchased the 25-gal reservoir tank and the rest of the hydraulic system     “We mounted the reservoir tank on the rear half of an old wagon with an 8-in I-beam for the splitter and put the hydraulic control on top of the tank ” he explains “The hydraulic pump from the truck is operated by the pto of the tractor The cylinder we used has a 22-in long stroke and 6-in dia ”     The 856 IH tractor’s 1 000 rpm’s are more than enough to run the heavy-duty hydraulics with plenty of power and speed Zemlicka’s son Rick decided to make good use of that and welded 4-way and 6-way splitters out of heavy steel from an old plow He can interchange them on the main splitter made of 1 by 8 by 22-in steel     The split wood falls onto a wood chute made out of steel pipes The splinters and debris fall through and helpers remove the split wood Each year the Zemlicka family splits wood to supplement heating fuel for three or four homes     The splitter works well Zemlicka says and has plenty of power to split the hardest oak and stringiest elm If they ever decide to upgrade it they might change the I-beam Though it’s adequate the powerful garbage truck hydraulics could handle a heavier-duty beam     The splitter cost about $300 to make     Contact: FARM SHOW Followup Norman Zemlicka 407 Benson St Cobb Wis 53526 ph 608 623-2001

To read the rest of this story, download this issue below or click here to register with your account number.
