"Bucket Hitch" Locks Into Place Automatically

Ed Maas invented his bucket-mounted hitch so he can move trailers with his skid steer loader without having to get on and off.

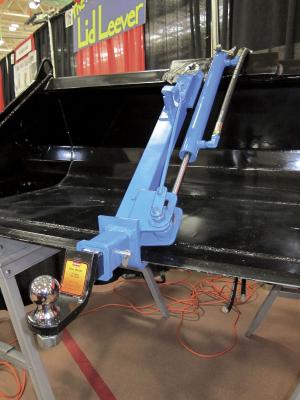

  When not in use, the patent pending bucket hitch is designed to retract and store at the top of the bucket without interfering with the normal use. When needed, the hitch swings down 90 degrees and locks onto the buckets cutting edge. A hydraulic cylinder that operates off the skid loaders hydraulics is used to swing the hitch up or down.
  The hitch extends several inches past the edge of the bucket. Retracting the cylinder causes the hitch to draw back against the lip of the bucket where it wedges tight. Then, a pin attached to a linkage rod automatically locks the hitch into place. The pin automatically unlocks to swing the hitch up out of the way.
  The hitch is designed with a standard Class III receiver tube so a large variety of hitch options can be used such as a drawbar, pintle hitch or ball hitch, says Maas. I plan to offer accessories for different configurations including a splitting valve for single hydraulics. If your skid loader doesnt have auxiliary hydraulics, you could use a 12-volt electric linear actuator which I also plan to offer.
  He says the hitch assembly will be available in 3 different models including a manual version where the operator dismounts the machine to swing down and latch the hitch into the working position; a mid-priced model where the operator is still required to dismount for pinning and unpinning; and a completely automatic model. An optional hitch rotator that lets you switch hitches without leaving the operators seat will also be available.
  Some bucket models may require some minor fabrication changes to the bucket or the hitch system mount, notes Maas.
  Prices will start about $175 for the basic manual model.
  Contact: FARM SHOW Followup, Ed Maas, 56520 365th St., Eden Valley, Minn. 55329 (ph 320 453-2756; cell 320 493-2330; edw.maas@gmail.com). Watch for additional information at www.therock-star.com.
