Stop Center Pivot Ruts Before They Start

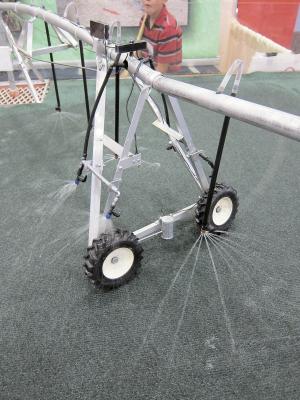

Ryan McConnell’s new Auto Dry Track System stops ruts before they start by using half nozzles to spray a half circle of water to the sides of the towers and behind the tires.
“A second advantage is that you don’t spray water on gearbox seals or center drive seals, which extends their life. And you can harvest without deep tracks, which extends the life of field equipment,” says McConnell.
He sells a complete package ready for installation that includes galvanized parts and brass solenoid valves, which attach to the pivot’s frame. The system is electrically wired into the forward/reverse contacts of each tower, with no structural changes to the tower.
The system waters 100 percent of your farm ground and works automatically in both directions. “It automatically switches directions when your pivot changes directions. No manual switching is necessary,” says McConnell.
The system can be used on all pivots – full circles, half circles, wiper and linear systems – and installed on all makes and models of new or existing pivots.
The Auto Dry Track System sells for about $700 installed per tower.
Contact: FARM SHOW Followup, Auto Dry Track Systems, Inc., 293 Roundhouse Rd., Lewistown, Mont. 59457 (ph Lloyd Parsons 406 366-3194 or Ryan McConnell 308 235-5187; autodrytrack@gmail.com; www.AutoDryTrack.com).
