Hydraulics Added To Mechanically-Adjusted Ditching Plow
 ✖  |

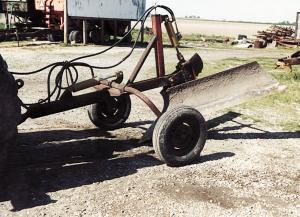

Adding hydraulics to a mechanically-adjusted ditching plow makes it a lot easier to set and change on the go. I mounted a 3 1/2-ft. vertical mast to the frame of the plow to act as an anchor for one end of a hydraulic cylinder. The other end of the cylinder goes to the mechanical adjustment point. The mast itself is anchored by a diagonal brace. Now it's easy to change the angle of the plow just using the hydraulic lever. (Leon Frohn, 388 Trestle Ave., Pocahontas, Ill. Ph 618 669-2179)
