Ground-Driven Buggy Feeds Big Bales
 ✖  |

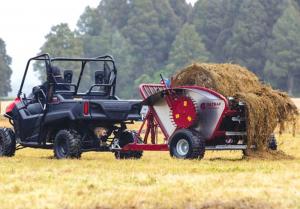

The Giltrap Bale Buggy can feed out big round bales with no auxiliary power needed. Designed for use behind ATVs, UTVs, a pickup, or even a horse, bales are loaded with a winch and unrolled with a simple ground feed. The simple but rugged design from New Zealand has surprised U.S. importer Ellis Equipment Company.
The Bale Buggy can handle any type of round bale. It feeds the bale out to the rear at a rate three times slower than ground speed. This prevents a continuous mat likely to get trampled. It also reduces torque load on the ground drive wheel, reducing potential slippage in wet conditions.
Loading the bale is accomplished with a hand-powered winch at the front of the Bale Buggy. Back up to the bale, tip the cradle to the ground, insert two hooks into the bale, and pull the bale aboard. As the bale is pulled over-center, the cradle tips into transit position, putting the load on the drawbar. This adds traction to the towing vehicle. It also reduces the potential for the bale to roll out when going uphill.
Once the hooks have been stowed, ground drive is initiated by lowering the drive wheel to the Bale Buggy’s right wheel. This powers the drag line on the rear with its offset teeth that pull off material from the bale. The teeth are tapered to release baleage as they carry it over the back of the Bale Buggy.
The Bale Buggy is 11 ft. long, 7 ft. wide, and just 59 in. high. Empty, it weighs in at 950 lbs.
Clair Ellis, Ellis Equipment, points out that one of the advantages of the Bale Buggy is that a bale can be partially unrolled. “Just put it away in the shed until you need to feed more,” he says. “It’s ideal for small farms.”
The Bale Buggy is priced at $11,900.
Contact: FARM SHOW Followup, Ellis Equipment Company, 2759 S. Hwy. 89, Wellsville, Utah 84339 (ph 800-949-2336; contact@ellisequipment.com; www.ellisequipment.com).
